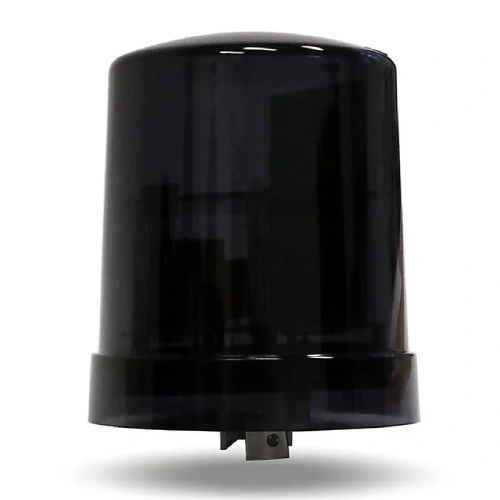

Streetlight Controller FRE-220 NEMA

Key Features:

• Supports ON/OFF and dimming operations.
• Optimized for LoRaWAN™ Class A and Class C networks.
• Autonomous operation with predefined schedules and adaptive lighting.
• Integrated light level sensor.
• Over-the-air firmware updates.
• IP66 rated for outdoor conditions.

Use Cases:

• Remote management of street lighting systems.
• Energy consumption monitoring and control.
• Integration into smart city infrastructure.

Specifications:

• Lamp Type: LED, CF, HID with electronic driver
• Maximum Lamp Power: 400W
• Dimming Range: 30%-100%
• Control Interface: 0-10V/1-10V, DALI
• Power Supply: 85 – 260VAC / 50Hz-60Hz
• Network Interface: LoRaWAN™ (868MHz / 915MHz / 923MHz)
• Power Consumption: 0.5W
• Operating Temperature Range: -25°C to +65°C
• Dimensions: 169.3 x 76.8 x 108.2 mm
• Ingress Protection: IP66
