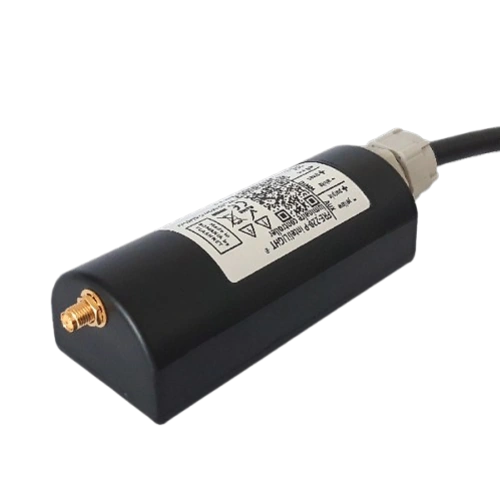

Streetlight Controller FRE-220P

Key Features:

• Supports ON/OFF and dimming operations up to 400W.
• Optimized for LoRaWAN™ networks.
• Autonomous operation with predefined schedules and adaptive lighting.
• Over-the-air firmware updates.
• IP66 rated for outdoor conditions.
• Integrated digital input for sensors.

Use Cases:

• Retrofitting existing street lighting systems.
• Integration into smart city infrastructure.
• Energy consumption monitoring and control.

Specifications:

• Lamp Type: LED, CF, HID with electronic driver
• Maximum Lamp Power: 400W (optional up to 750W)
• Dimming Range: 1%-100%
• Control Interface: Analog 1-10V / 0-10V / PWM / DALI
• Power Supply: 85 – 275VAC / 50Hz-60Hz
• Network Interface: LoRaWAN (Class C or Class A)
• Power Consumption: 1.2W (average), 2W (maximum)
• Operating Temperature Range: -25°C to +70°C
• Dimensions: 112.2 x 48 x 37 mm
• Ingress Protection: IP66
• Impact Protection: IK09
